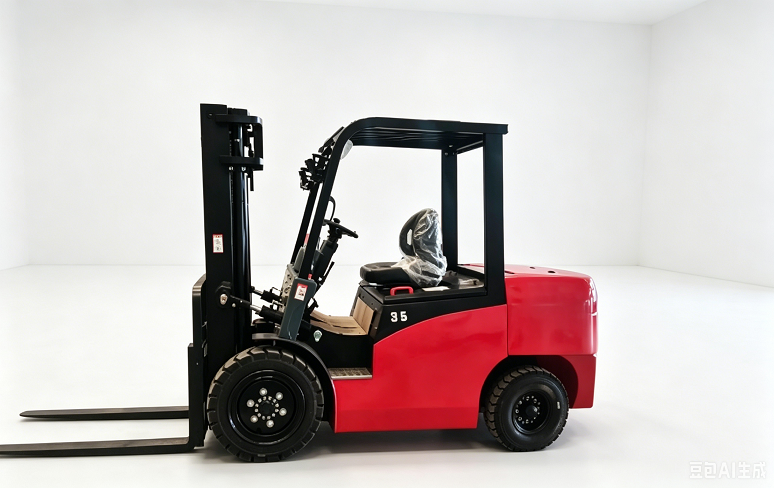

Compact Small Electric Forklift
1. Low prices but high quality wheel loader and forklift—now that the competition is fierce, we must follow market principles and adopt a strategy of small profits but quick turnover from our wheel loader and forklift.
2. No matter how many years have passed, you can always get original parts of our wheel loader and forklift from us, as our products are designed for long-lasting use.
3. As the manufacturer, we handle our own production, which allows us to offer customized solutions even if you're purchasing just a single unit.
4. Our after-sales service ensures that any issues are resolved within 24 hours at the latest, taking into account the time difference between us.
- Leiya
- Qingzhou, China
- 10-30 days
- 90 sets/month
- Information

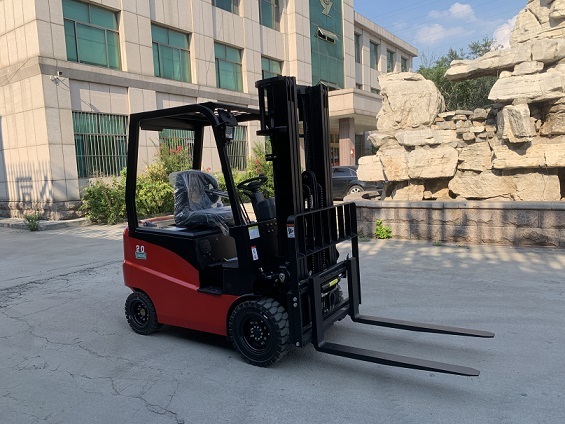

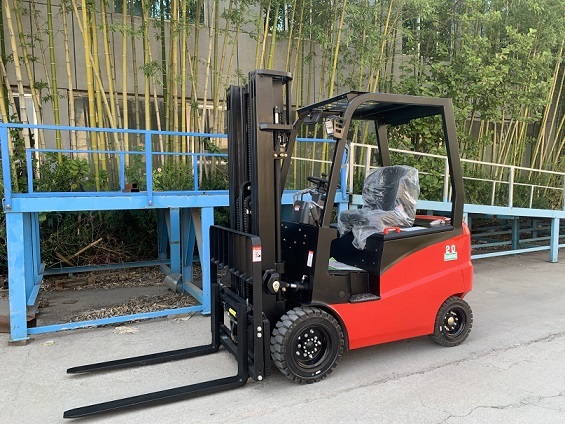

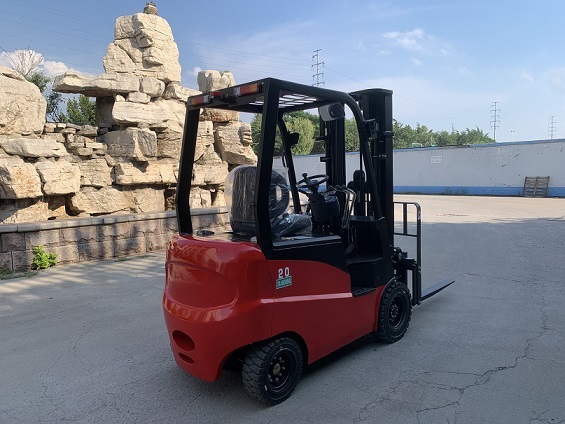

CPD20 electric forklift | ||
Model |
| CPD20 |
Power type |
| Acid Battery |
rated lifting capacity |
| 2000 kg |
load center distance |
| 500 mm |
length with fork | L1 | 3170mm |
length without fork | L2 | 2100 mm |
whole width | B | 1160 mm |
height no lifting frame | H1 | 2020 mm |
top frame height | H2 | 2080 mm |
Max. height working | H3 | 4005 mm |
distance from seat to top light | L3 | 930 mm |
wheel base | L4 | 1350 mm |
front overhang | Y | 475 mm |
back overhang | L5 | 490 mm |
front wheel tread | R | 968 mm |
back wheel tread | P | 954 mm |
Min. floor clearance | F | 120 mm |
Max. lifting height | H | 4055 mm |
free lifting height | H4 | 145 mm |
fork changing | S | 250-1000 |
Min. turning radius | WA | 2200 mm |
Min right angle aisle width | RA | 4220 mm |
frame angle | α/β | 6/12 |
Max. lifting speed without goods |
| 450 mm/s |
Max lifting speed with full goods |
| 330 mm/s |
Max. speed without goods |
| 16.5km/h |
max. speed with goods |
| 15km/h |
whole weight |
| 3560 kg |
wheels qty |
| 2/2 |
tire model |
| pneumatic |
front tire |
| 20*7-10 |
rear tire |
| 16*6-8 |
hand brake |
| hydraulic-pedal |
brake type |
| M-Hand |
battery Volt/capacity |
| 48V/230Ah |
Driving motor power |
| 5 kw |
pump power |
| 5 kw |

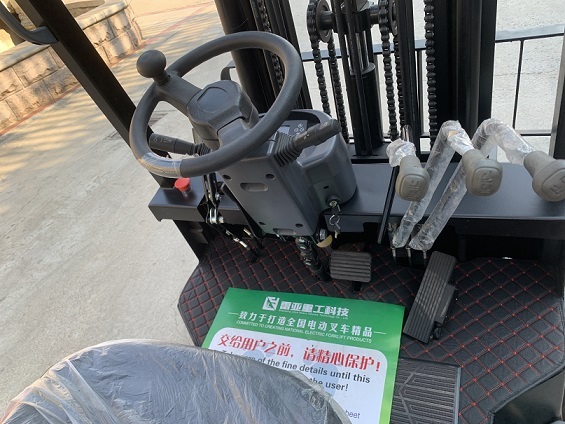

1. Turn on the machine by swiping the card 2. Electric park brake |
| |
