Compact Backhoe Loader
1. Low prices but high quality wheel loader and forklift—now that the competition is fierce, we must follow market principles and adopt a strategy of small profits but quick turnover from our wheel loader and forklift.
2. No matter how many years have passed, you can always get original parts of our wheel loader and forklift from us, as our products are designed for long-lasting use.
3. As the manufacturer, we handle our own production, which allows us to offer customized solutions even if you're purchasing just a single unit.
4. Our after-sales service ensures that any issues are resolved within 24 hours at the latest, taking into account the time difference between us.
- Leiya
- Qingzhou, China
- 10-30 days
- 10 sets/month
- Information

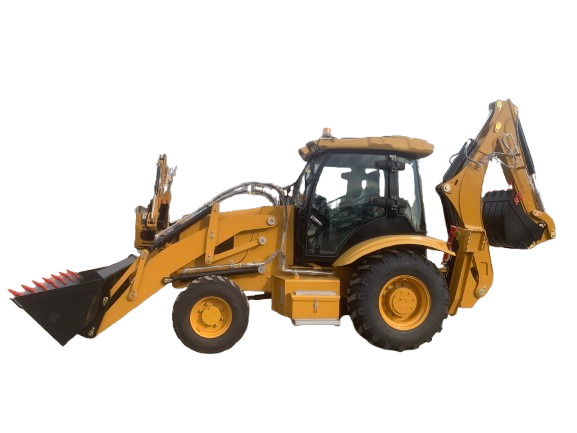

ZY-388 backhoe loader
| |
Overall Operating Weight | 8000KG |
Transport Dimension | |
mm L*W*H | 7600×2260×2940mm |
Wheel base | 2250mm |
Min. Ground Clearance | 300mm |
Bucket Capacity | 1.3m3 |
Breakout Force | 38KN |
Loading Lifting Capacity | 2800KG |
Bucket Dumping Height | 2800mm |
Bucket Dumping Distance | 1062mm |
Digging Depth | 52mm |
Backhoe Capacity（Width） | 0.35m3(620mm) |
Max. Digging Depth | 4100mm |
Optional Digging Depth | 4000mm |
Swing Angle of backhoe | 190o |
Max. Pulling Force | 39KN |
Engine | |
Model | YUNNEI 38GBZ |
Type | In Line，Direct injection，Four-Stroke，Water Cooling |
Rated Power | 76KW |
Steering System | |
Steering Angle | ±36 o |
Min. turning radius | 6581mm |
Pressure of the system | 12Mpa |
桥Axle | |
Brand | FEICHENG YUNYU |
Main Transmission Type | Double Reduction |
Final Reducer | Single Stage Final Reducer |
Rated Loader of Axle | 4/18.5t |
Transmission System | |
Torque Converter | |
Model | YJ280 |
Type | Single-stage Three Elements |
Cooling Method | Oil-cooling Pressure Circulation |
Gearbox | |
Type | Fixed Shaft Power Transmission |
Gears | Two Gears Ahead, Two Gears Astern |
Max.Speed | 30Km/h |
Tyre | |
Model | （F）14-17.5 （R）19.5L-24 |
Pressure of Front wheel | 0.22 Mpa |
Pressure of Back Wheel | 0.22 Mpa |
Brake System | |
Service Brake | Air Over Oil Caliper Brake |
External Type | |
Self-regulation | |
Self-balance | |
Emergency Brake | Operation Power Implementing brake |
Manual Operation Power Terminating Brake | |
Hydraulic System | |
Pressure of Hydraulic System | 22Mpa |
Digging Power of Excavator Grab | 46.5KN |
Digging Power of Dipper | 31KN |
Bucket Lifting Time | 5.4S |
Bucket Lowering Time | 3.1S |
Bucket Discharge Time | 2.0S |
Standard configuration | bucket，digger，fan，Luxurious adjustable swivel seat, adjustable instrument panel, hydraulic pilot operation, Yunnei power engine (can be equipped with Yuchai and Dongfeng Cummins engines), 14-17.5 vacuum front tires, 19.5L-24 vacuum rear tires, special 280 gearbox, Feicheng Yunyu steering axle, A-shaped legs |
The parameters or configuration are subject to change without notice. | |
