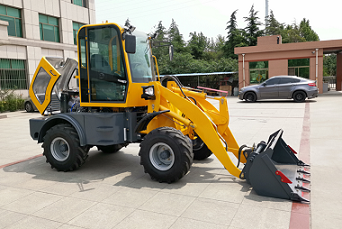

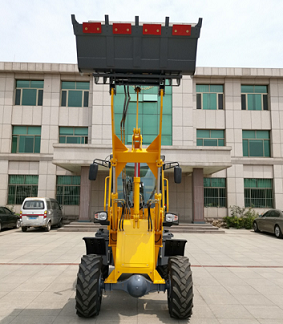

1.5 Ton Small Front End Loader
1. Low prices but high quality wheel loader and forklift—now that the competition is fierce, we must follow market principles and adopt a strategy of small profits but quick turnover from our wheel loader and forklift.
2. No matter how many years have passed, you can always get original parts of our wheel loader and forklift from us, as our products are designed for long-lasting use.
3. As the manufacturer, we handle our own production, which allows us to offer customized solutions even if you're purchasing just a single unit.
4. Our after-sales service ensures that any issues are resolved within 24 hours at the latest, taking into account the time difference between us.
- Leiya
- Qingzhou, China
- 140 sets/month
- Information
| 1.5 ton mini wheel loader front end loader small loader | ||
Basic Parameter | Dimension | 5000*1750*2650 mm |
Rated Load | 1500 kg | |
Operating Weight | 3500 kg | |
Bucket capacity | 0.7 m³ | |
Max.Dumping Height | 3000 mm | |
Max.Dumping Distance | 1000 mm | |
Bucket width | 1690 mm | |
Boom lifting time | 4 s | |
Dump time | 3.5 s | |
Grade ability | 30° | |
Color | Customized, standard is yellow | |
Engine | Model | Quanchan 4B2-52M22 Yunnei YN27 Xinchai C490BPG Xichai 490 |
Rated power/Speed | 38kw/2400rpm (Quanchai) 42kw/2200rpm (Yunnei) 40kw/2650rpm(Xinchai) 36.8kw (Euro 3) 37kw (xichai) | |
Pattern | Inline/ Direct Injection/ water cooled/4 stroke cycle | |
Storage Battery | 80 A free-maintenance, “camel” brand | |
Transmission System | Axle | Isuzu |
Gearbox model | 240 integrated type | |
Drive Mode | Four-wheel manual drive& hydraulic | |
Steering Angle | ±35° | |
Min. Turning Radius | 3500mm | |
Steering System
| Steering System Pattern | Articulated type, Hydraulic power steering |
Braking System |
| Drum brake |
Tyre Size |
| 20.5/70-16 |
loadingx | 1 set in 20GP, 3 sets in 40HC | |
1 . Executive standard: customer’s requirements. Engine brand, color, bucket size, boom length and transmission type etc. is according to customers’ request. 2. Warranty: 12 months after delivery, necessary spare parts presented free. After warranty, we can always provide spare parts according to customer’s wishes. | ||
1. Euro II/III/V, EPA, Tier 2/3/4 engine for 1.5 ton mini wheel loader
2. 3/4 ways hydraulic valves
3. EU farm shape/construction shape
4. LED lights, rear/front/top light, cabin interior light
5. heater, fans, radio, MP3, fire extinguisher in cabin
6. reverse alarm, luxurious cab,adjustable seat, best tire
7. optional items: floating function, rear camera, hydraulic joystick, electronic joystick, outer preheater for engine, hand brake, netural start, AC

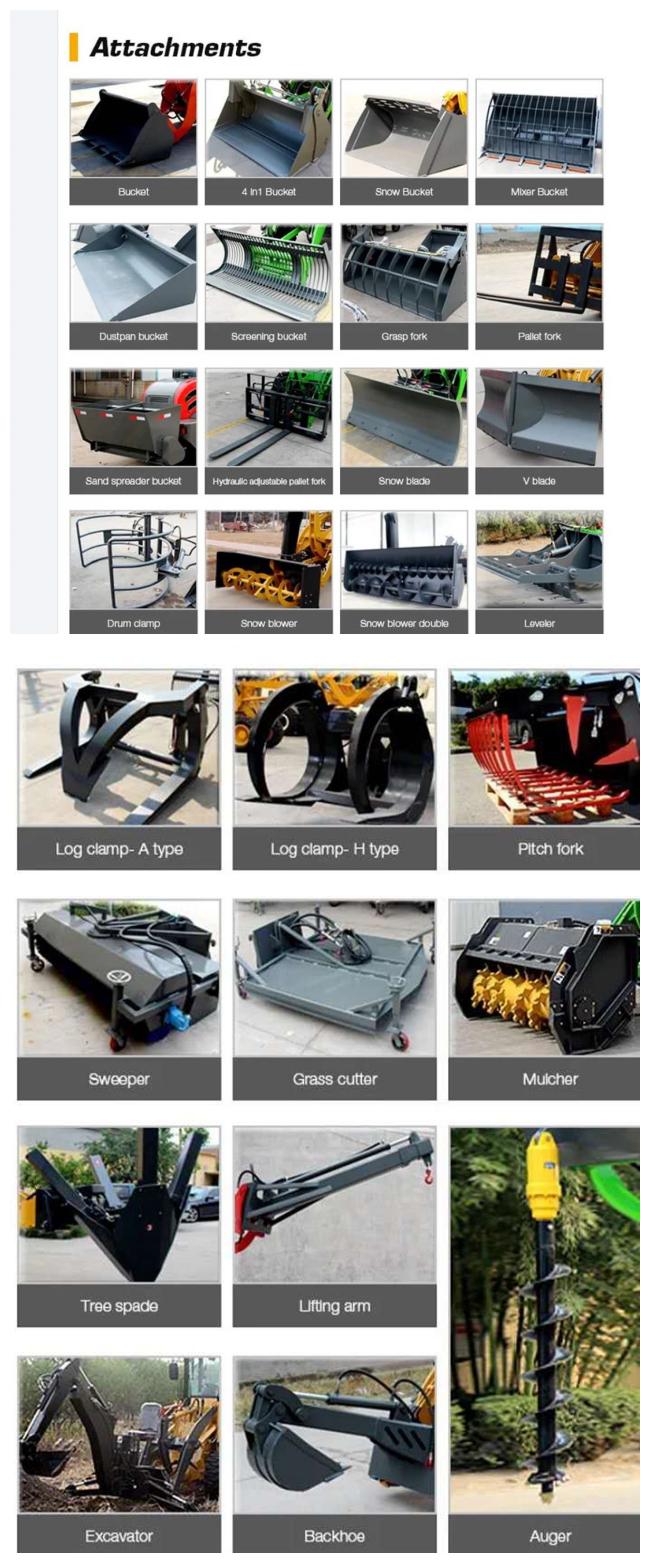

8.optional attachments: quick hitch, pallet fork, log fork, snow blade, snow plow, snow sweeper, 4 in 1 bucket, grass cutter, digger, drilling, hydraulic hammer etc.
9. any color as you want

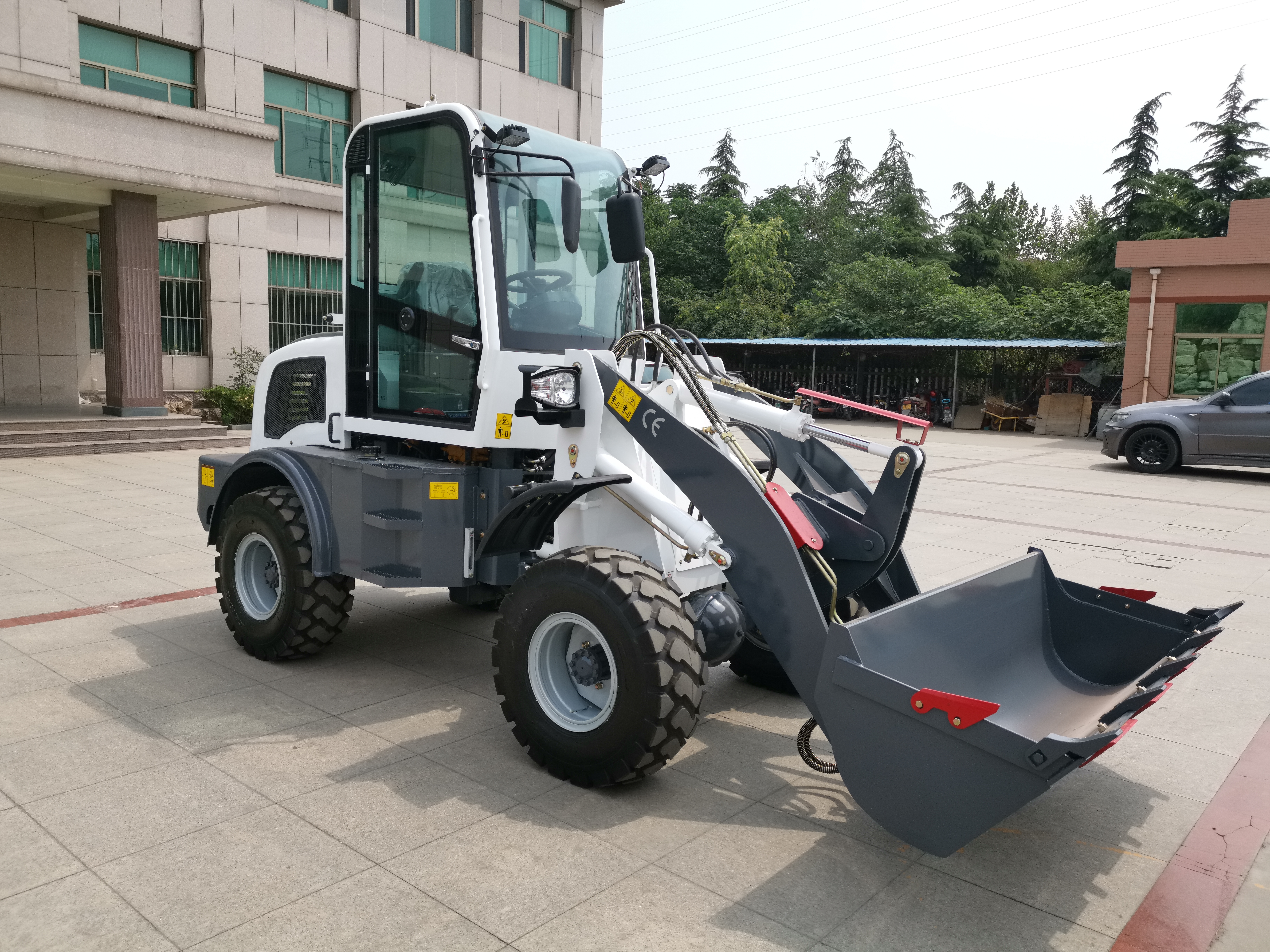

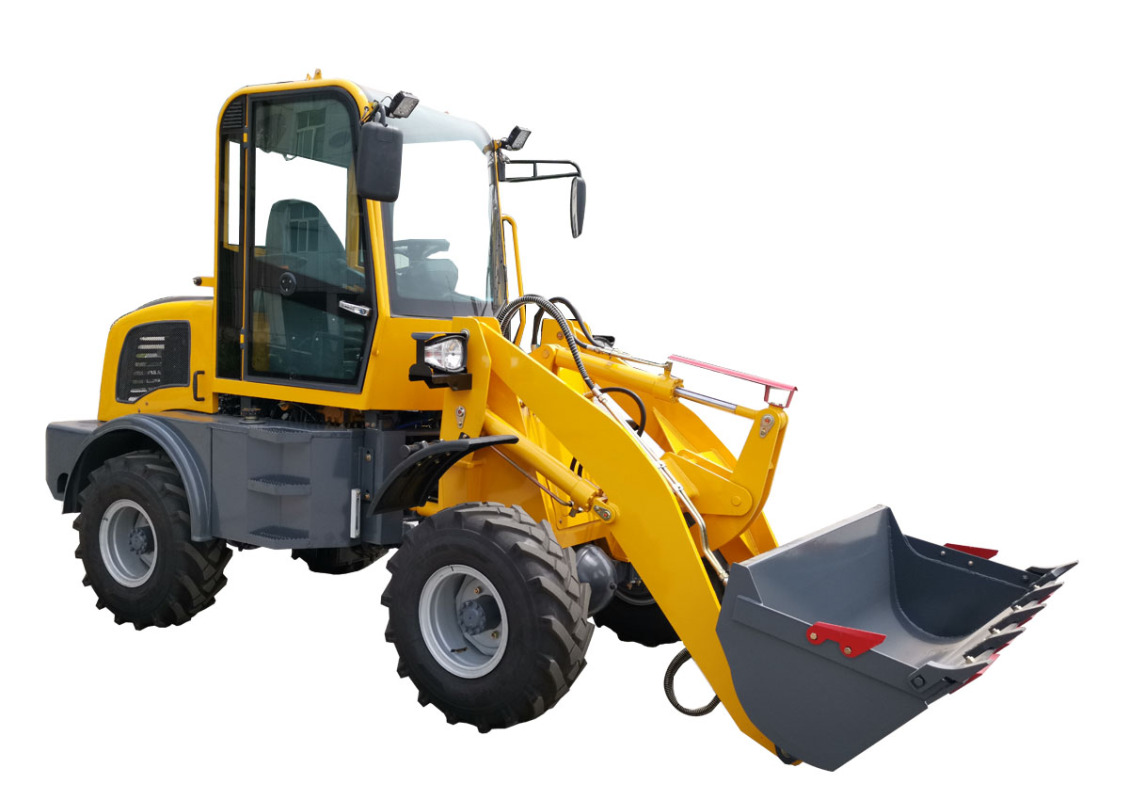

1.5 Ton Small Front End Loader, articulated compact mini wheel loader ZL918
