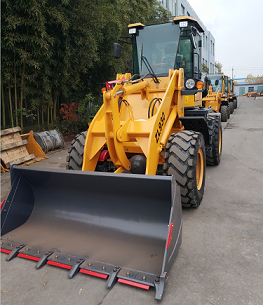

Middle Size Wheel Loader Construment Equipment
1. very mature technology, Low prices but high quality wheel loader and forklift—now that the competition is fierce, we must follow market principles and adopt a strategy of small profits but quick turnover from our wheel loader and forklift.
2. No matter how many years have passed, you can always get original parts of our wheel loader and forklift from us, as our products are designed for long-lasting use.
3. As the manufacturer, we handle our own production, which allows us to offer customized solutions even if you're purchasing just a single unit.
4. Our after-sales service ensures that any issues are resolved within 24 hours at the latest, taking into account the time difference between us.
- Lieya
- Qingzhou, China
- 10-29 days
- 100 sets/month
- Information
Rated capacity | 1.0 m³ |
Rated load | 2000kg |
Transportation | 6200mm*1950mm*2860mm |
Dump height | 3500mm |
Dump distance | 1000mm |
Wheel base | 2400mm |
Tread | 1440mm |
Max. breakout force | 48.87 KN |
Total time | 12s |
Operating weight | 5800kg |
Engine | |
Model | YN38GBZ |
Pattern | Inline, water-cooled, 4-stroke, direct injection |
Rated power/Speed | 76KW/2400 rpm |
Torque converter and transmission system | |
Pattern | 3-element single stage |
Transmission type | Full-power shift, countershaft type |
Number of gear | 2 forward, 2 reverse 2 |
Max. travel speed | 24km/h |
Axle | Wheel reduction gear drive |
Main reducer pattern | Arc taper gear, model ration of first grade |
Pattern of wheel side moderation | Planet gear moderation of single |
Tire | |
Tire size | 16/70-20 |
Steering system | |
Pattern | Articulated and hydraulic steering |
Min. turning radius(outside of bucket) | 5600mm |
Max. turning angle | 35°±1 |
Implement hydraulic system | |
Implement pump | CBG2063 |
System working pressure | 16MPa |
Brake system | |
Brake type | Air assisted oil disc on four wheel |
Parking brake type | Soft axle control, outside bunch drum type |
1. Executive standard: customer's requirements. Above information serves as a reference only, we can change the parameters reasonably according to your request. | |
1. What is your delivery time?
Our delivery time is 10-25 days from the deposit.
2. what is your warranty Warranty: 12 months after delivery, necessary spare parts presented free.
After warranty, we can always provide spare parts according to customer’s wishes.
3. Do you have any qualifications and certificates for loaders?
Yes ,we have CE and ISO to certificate the wheel loader .
4. Do you have any optional attachments:
Yes, we can supply many kinds of optional attachments, suchas: quick hitch,
pallet fork, log fork, snow blade, snow plow, snow sweeper, 4 in 1 bucket, grass cutter, digger, drilling, hydraulic hammer etc.
5. Can we change to other engine brands:
Yes, engine can be chosen by customer request
6.How many sets can load into container?
It depends on wheel loader model, for example, one 20GP load one set ZL918, but one 40HC can load 3 sets
7. Can we change to other colors?
Of course you can, we are OEM
8.what is your payment term?
Payment terms:30% T/T deposit, balance upon the copy of B/L.
