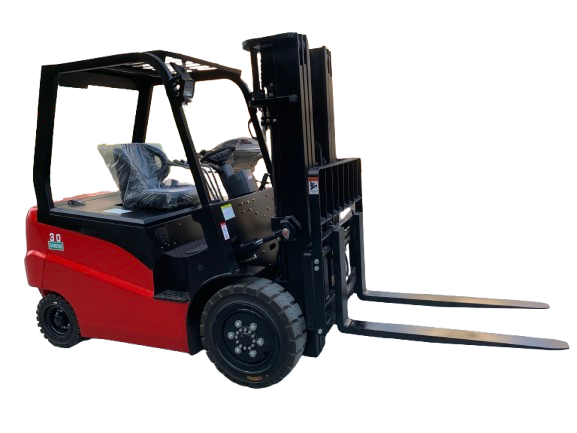

3 Ton Pallet Jak Electric Forklift
1. Low prices but high quality wheel loader and forklift—now that the competition is fierce, we must follow market principles and adopt a strategy of small profits but quick turnover from our wheel loader and forklift.
2. No matter how many years have passed, you can always get original parts of our wheel loader and forklift from us, as our products are designed for long-lasting use.
3. As the manufacturer, we handle our own production, which allows us to offer customized solutions even if you're purchasing just a single unit.
4. Our after-sales service ensures that any issues are resolved within 24 hours at the latest, taking into account the time difference between us.
- Leiya
- Qingzhou, China
- 10-30 days
- 90 sets/month
- Information
CPD 30 electric forklift | ||
Model |
| CPD30 |
Power type |
| Lithium Battery |
rated lifting capacity |
| 3000 kg |
load center distance |
| 500 mm |
length with fork | L1 | 3730mm |
length without fork | L2 | 24660 mm |
whole width | B | 1280 mm |
height no lifting frame | H1 | 2570 mm |
top frame height | H2 | 5056 |
Max. height working | H3 | 4005 mm |
distance from seat to top light | L3 | 972 mm |
wheel base | L4 | 1680 mm |
front overhang | Y | 475 mm |
back overhang | L5 | 490 mm |
front wheel tread | R | 1068 mm |
back wheel tread | P | 968 mm |
Min. floor clearance | F | 115 mm |
Max. lifting height | H | 4055 mm |
free lifting height | H4 | 145 mm |
fork changing | S | 250-1100 |
Min. turning radius | WA | 2380 mm |
Min right angle aisle width | RA | 4220 mm |
frame angle | α/β | 6/6 |
Max. lifting speed without goods |
| 450 mm/s |
Max lifting speed with full goods |
| 330 mm/s |
Max. speed without goods |
| 15km/h |
max. speed with goods |
| 11km/h |
whole weight |
| 5010 kg |
wheels qty |
| 2/2 |
tire model |
| solid |
front tire |
| 28*9-15 |
rear tire |
| 650-10 |
