0.8 Ton Front In Loader Mini Near Me
1. Low prices but high quality wheel loader and forklift—now that the competition is fierce, we must follow market principles and adopt a strategy of small profits but quick turnover from our wheel loader and forklift.
2. No matter how many years have passed, you can always get original parts of our wheel loader and forklift from us, as our products are designed for long-lasting use.
3. As the manufacturer, we handle our own production, which allows us to offer customized solutions even if you're purchasing just a single unit.
4. Our after-sales service ensures that any issues are resolved within 24 hours at the latest, taking into account the time difference between us.
- Information

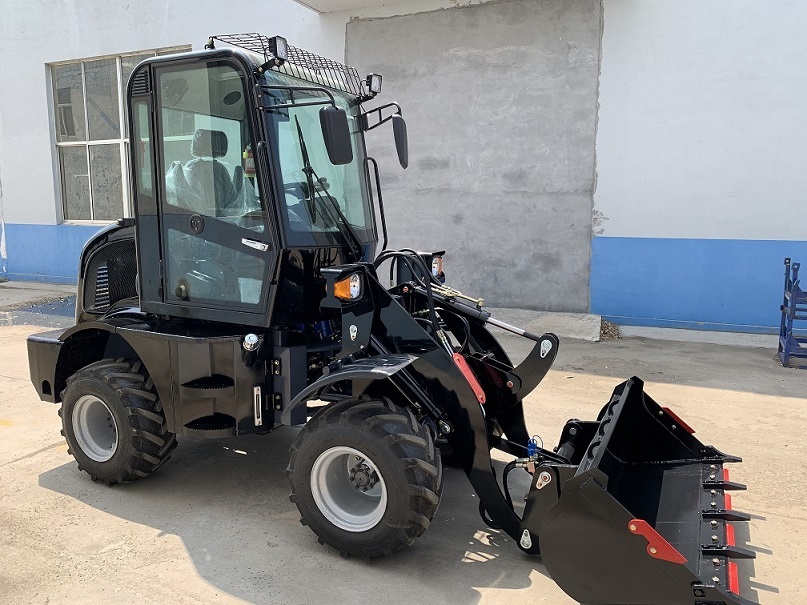

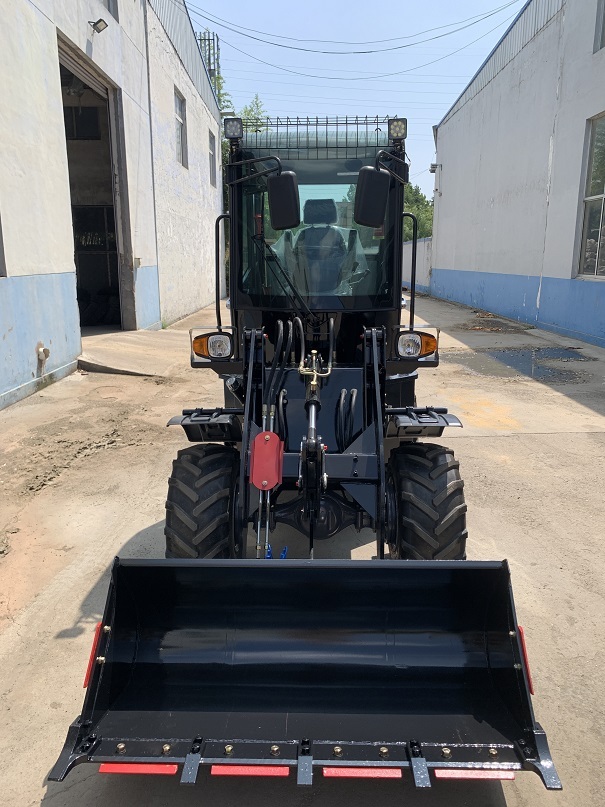

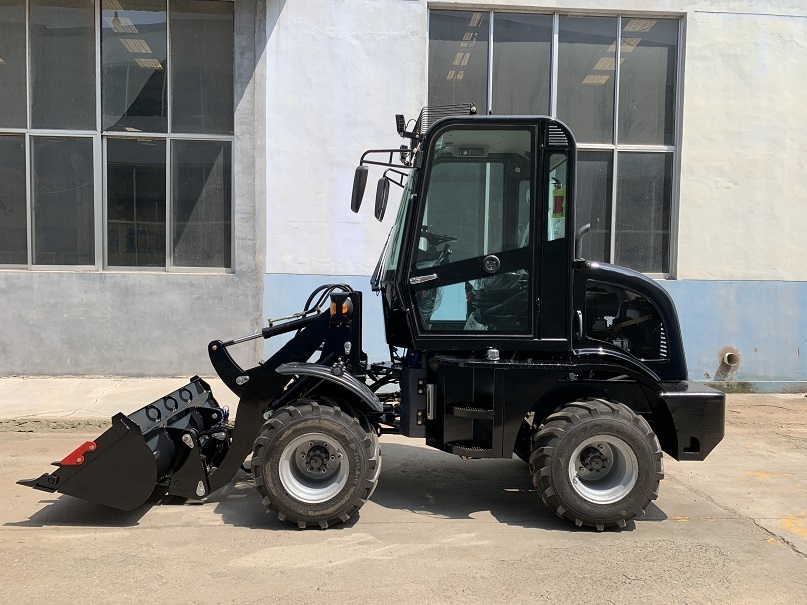

ZL908 compact articulated mini wheel loader small loader | ||
Basic Parameter | Dimension | 4200*1470*2650 mm |
Rated Load | 800 kg | |
Operating Weight | 2800 kg | |
Bucket capacity | 0.3-0.5 m³ | |
Max.Dumping Height | 2300 mm | |
Max.Dumping Distance | 800 mm | |
Boom lifting time | 4 s | |
Dump time | 3.5 s | |
Grade ability | 30° | |
Color | Customized, standard is yellow | |
Engine | Model | Yunnei YN27 (42kw) Optional: changchai ZN390Q, 25kw Xinchai C490BPG (Euro 3), 36.8kw Yunei Euro 5, 18.8kw. |
Rated power/Speed | 42KW | |
Pattern | Inline/ Direct Injection/ water cooled/4 stroke cycle/4 cylinders | |
Transmission System | Axle | Isuzu |
Drive Mode | Four-wheel manual drive& hydraulic | |
Type | single-phase single-stage radial-inward turbine triplex | |
Gearbox type | Fixed-spindle power shift | |
Steering System
| Steering System | Articulated type, Hydraulic power steering |
Steering Angle | 35°±1 | |
Min. Turning Radius | 3400mm | |
Braking System | Drum brake (oil brake) | |
Tyre Size | 31*15.5-15 optional:850-16, 20.5/70-16 | |
loadingx | 1 set in 20GP, 4 sets in 40HC | |
1. Executive standard: customer’s requirements. Engine brand, color, bucket size, boom length and transmission type etc. is according to customers’ request.
2. Optional parts: snow plow, pallet fork, gripper, rock/coal bucket, portal frame, side dump bucket, clamp bucket, light material bucket, joystick, air condition, back up camera, hydraulic joystick, electric joystick, AC etc.
3. Warranty: 12 months from you receive the wheel loader, necessary spare parts presented free. After warranty, we can always provide spare parts according to customer’s wishes. | ||

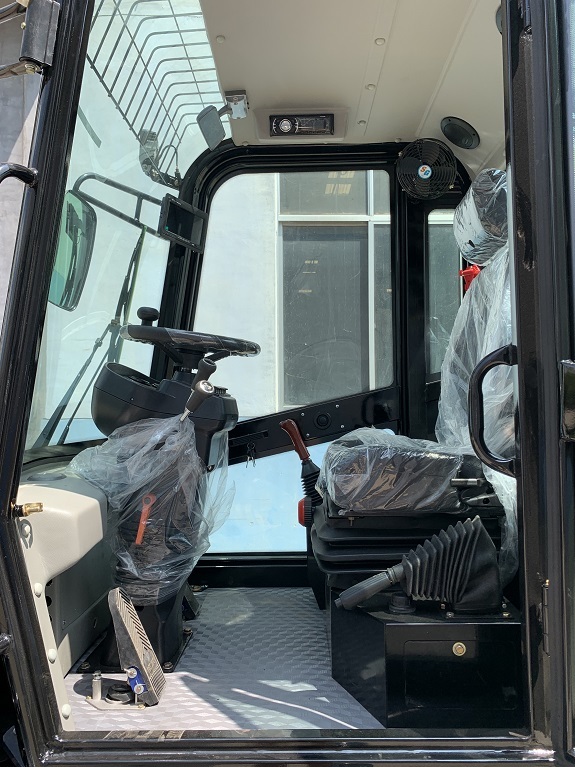

Luxury cabin

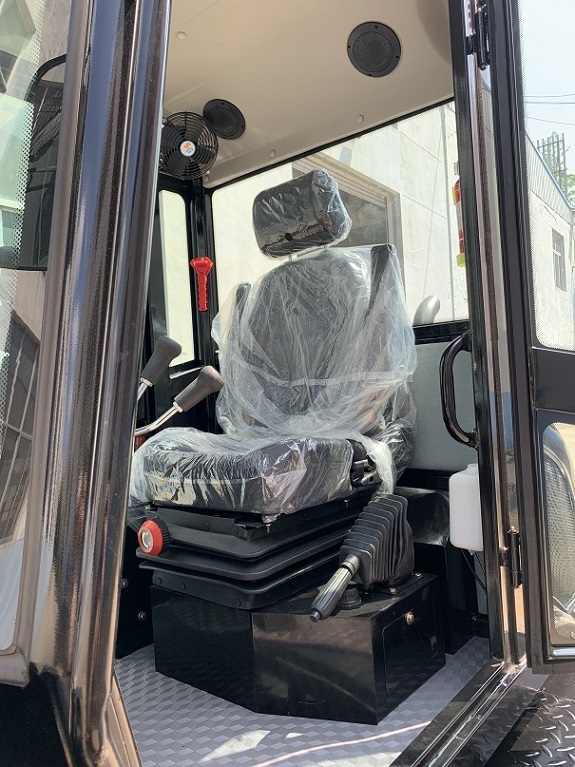

adjustable big seat with armrest
The cabin is surrounded by tempered glass on all four sides.
adjustable liquid crystal display (LCD) instrument panel
Warm air vents under the front window glass
Like a car with a windshield washer fluid system
Radio with MP3 and buttons displayed in Engligh
hammer, fire extinguisher
