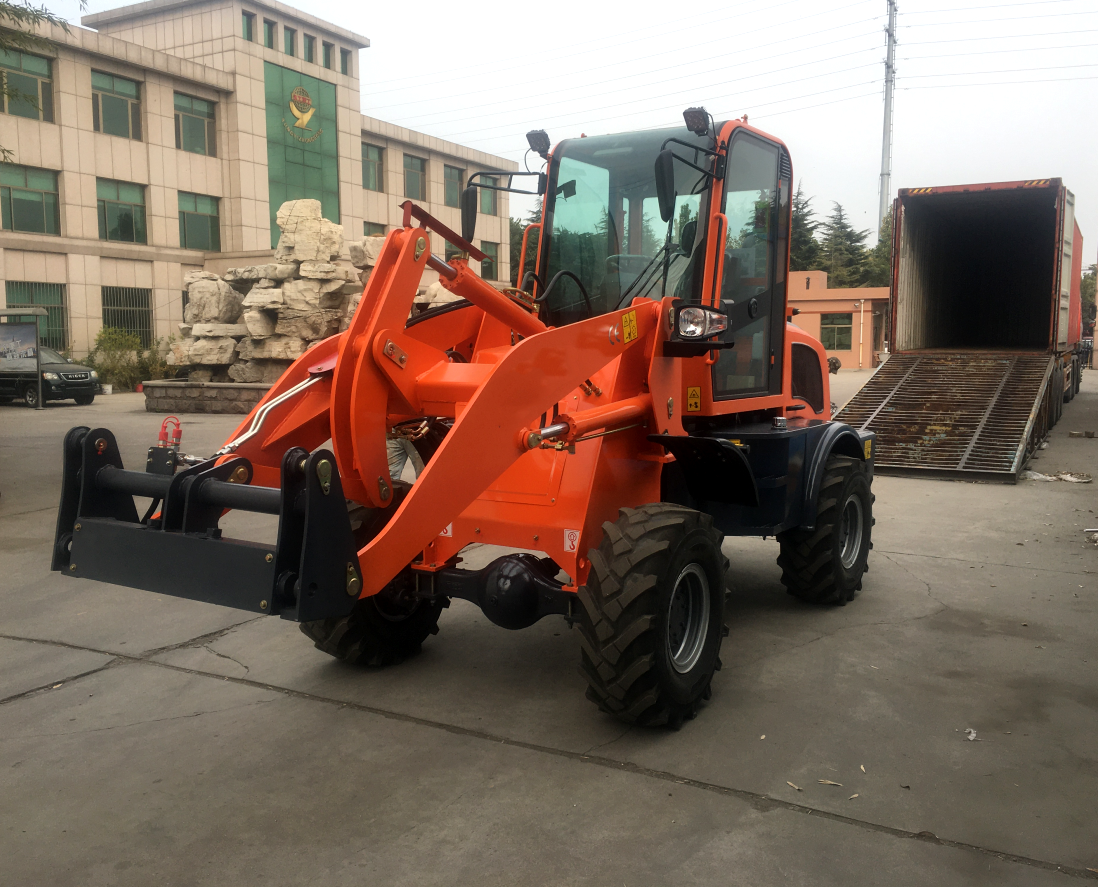

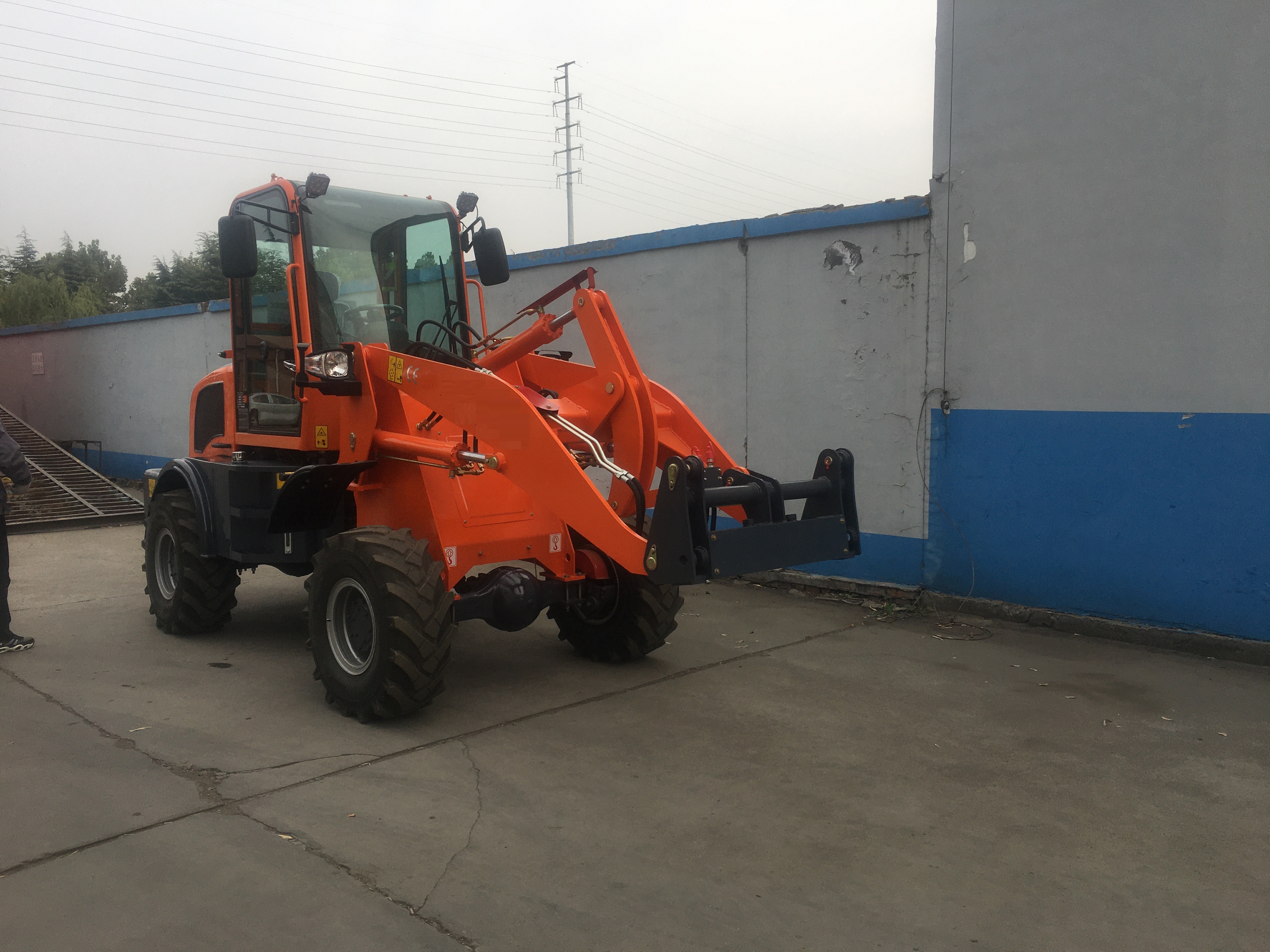

ZL920 Articulated Compact Mini radlader mini loader
1. Low prices but high quality wheel loader and forklift—now that the competition is fierce, we must follow market principles and adopt a strategy of small profits but quick turnover from our wheel loader and forklift.
2. No matter how many years have passed, you can always get original parts of our wheel loader and forklift from us, as our products are designed for long-lasting use.
3. As the manufacturer, we handle our own production, which allows us to offer customized solutions even if you're purchasing just a single unit.
4. Our after-sales service ensures that any issues are resolved within 24 hours at the latest, taking into account the time difference between us.
- Leiya
- Qingzhou, China
- 15 days
- 300sets/month
- Information
| 1.8 ton mini wheel loader front end loader small loader | ||
Basic Parameter | Dimension | 5200*1750*2650 mm |
Rated Load | 1800 kg | |
Operating Weight | 3900 kg | |
Bucket capacity | 0.9 m³ | |
Max.Dumping Height | 3200 mm | |
Max.Dumping Distance | 1200 mm | |
Bucket width | 1790 mm | |
Boom lifting time | 4 s | |
Dump time | 3.5 s | |
Grade ability | 30° | |
Color | Customized, standard is yellow | |
Engine | Model | Yunnei YN27GBZ |
Rated power/Speed | 58KW | |
Pattern | Inline/ Direct Injection/ water cooled/4 stroke cycle | |
Storage Battery | 80 A free-maintenance, “camel” brand | |
Transmission System | Axle | Hub reduction axle |
Gearbox model | 265 integrated type | |
Drive Mode | Four-wheel manual drive& hydraulic | |
Steering Angle | ±35° | |
Min. Turning Radius | 3500mm | |
Steering System
| Steering System Pattern | Articulated type, Hydraulic power steering |
Braking System |
| Disc brake |
Tyre Size |
| 23.5/70-16 |
loadingx | 1 set in 20GP, 3 sets in 40HC | |
1. Euro II/III/V, EPA, Tier 2/3/4 engine for 1.8 ton mini wheel loader
2. 3/4 ways hydraulic valves for 1.8 ton articulating mini wheel loader
3. EU farm shape/construction shape for 1.8 ton front loader
4. LED lights, rear/front/top light, cabin interior light for 1.8 ton small wheel loader
5. heater, fans, radio, MP3, fire extinguisher in cabin

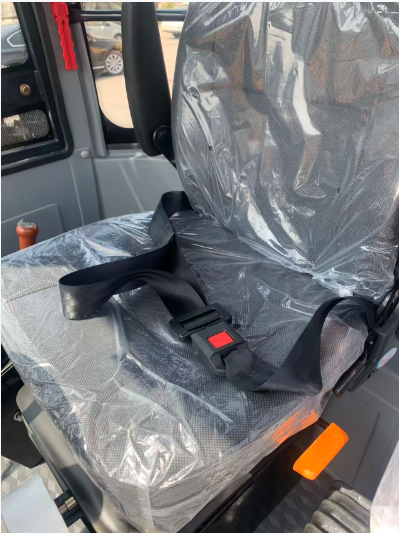

6. reverse alarm, luxurious cab,adjustable seat, best tire
7. optional items: floating function, rear camera, hydraulic joystick, electronic joystick, outer preheater for engine, hand brake, netural start, AC

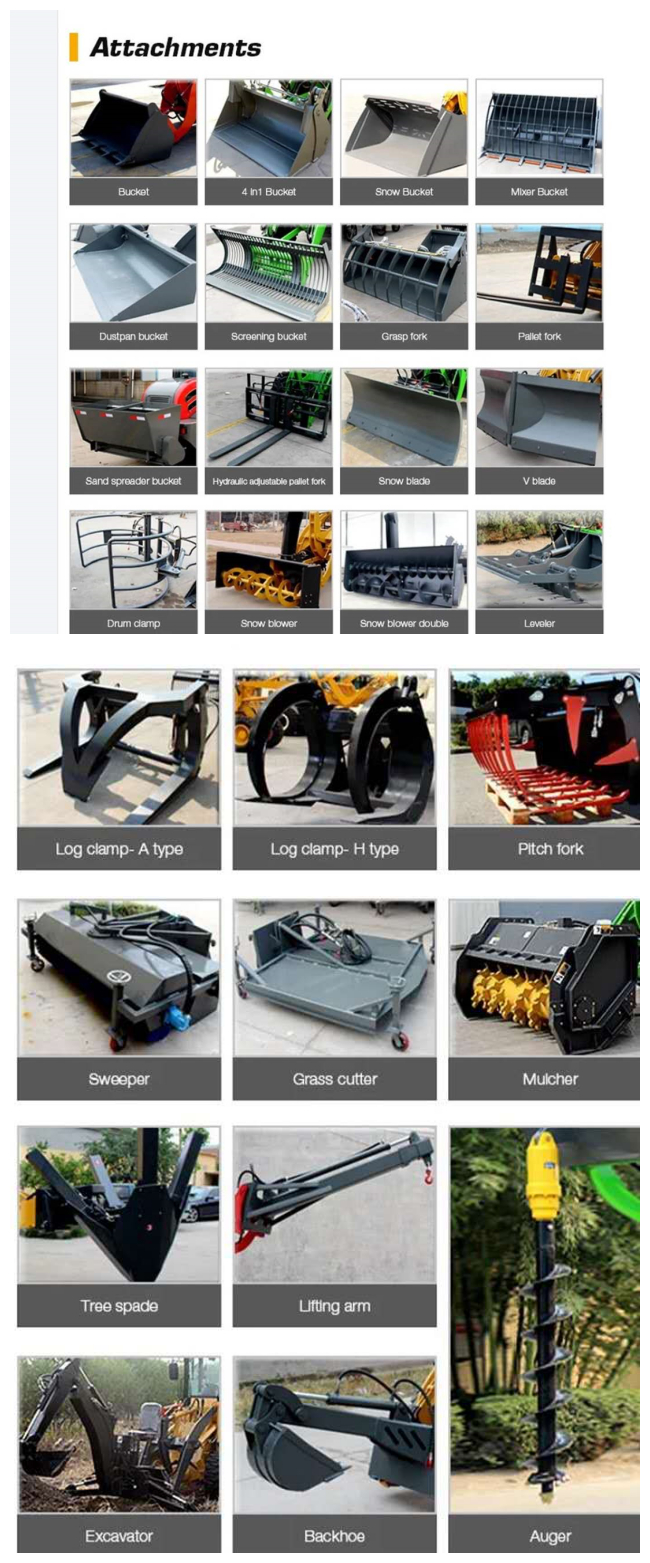

8.optional attachments for 1.8 ton articulated mini wheel loader: quick hitch, pallet fork, log fork, snow blade, snow plow, snow sweeper, 4 in 1 bucket, grass cutter, digger, drilling, hydraulic hammer etc.
9. any color as you want, we are OEM

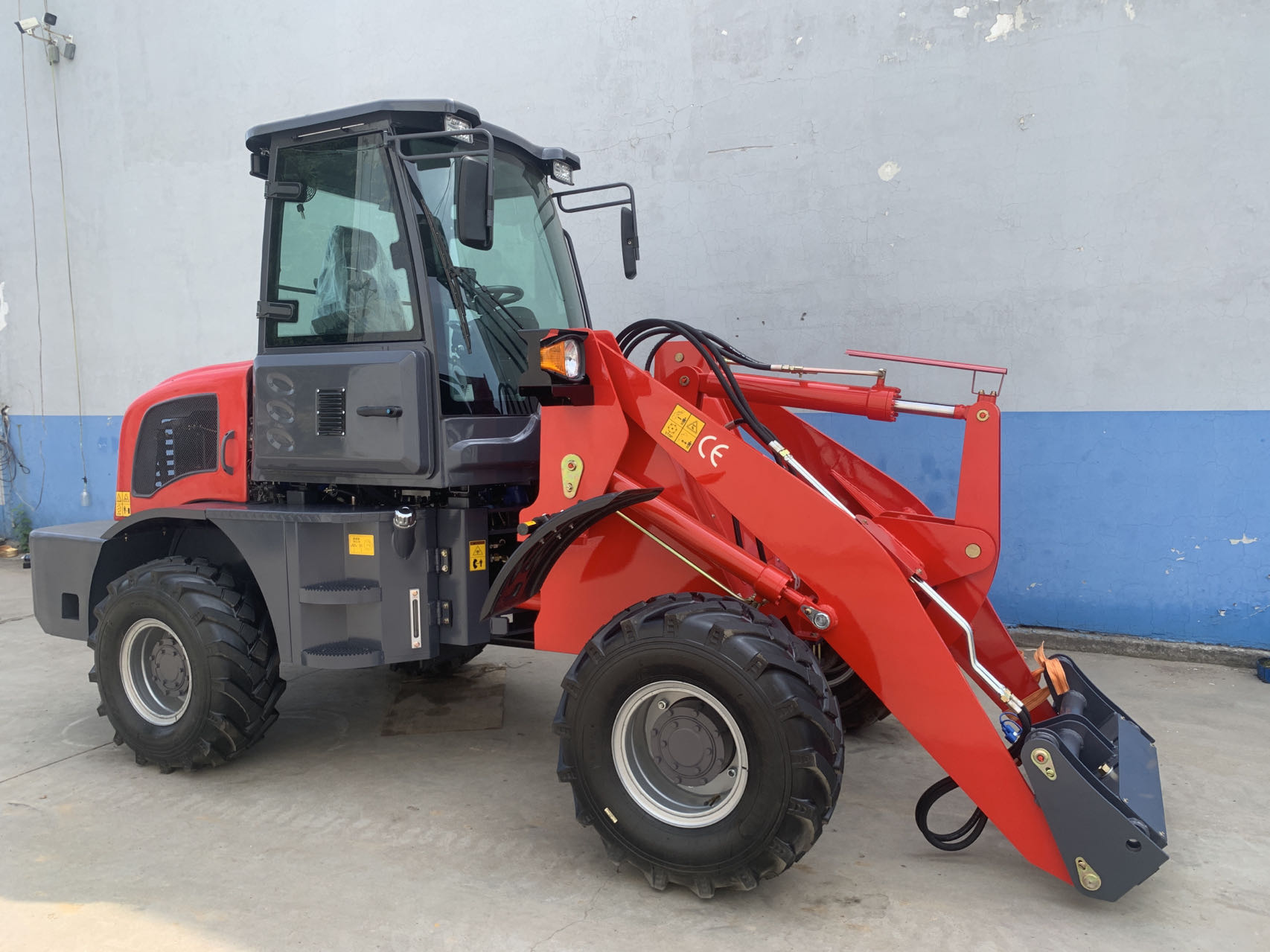

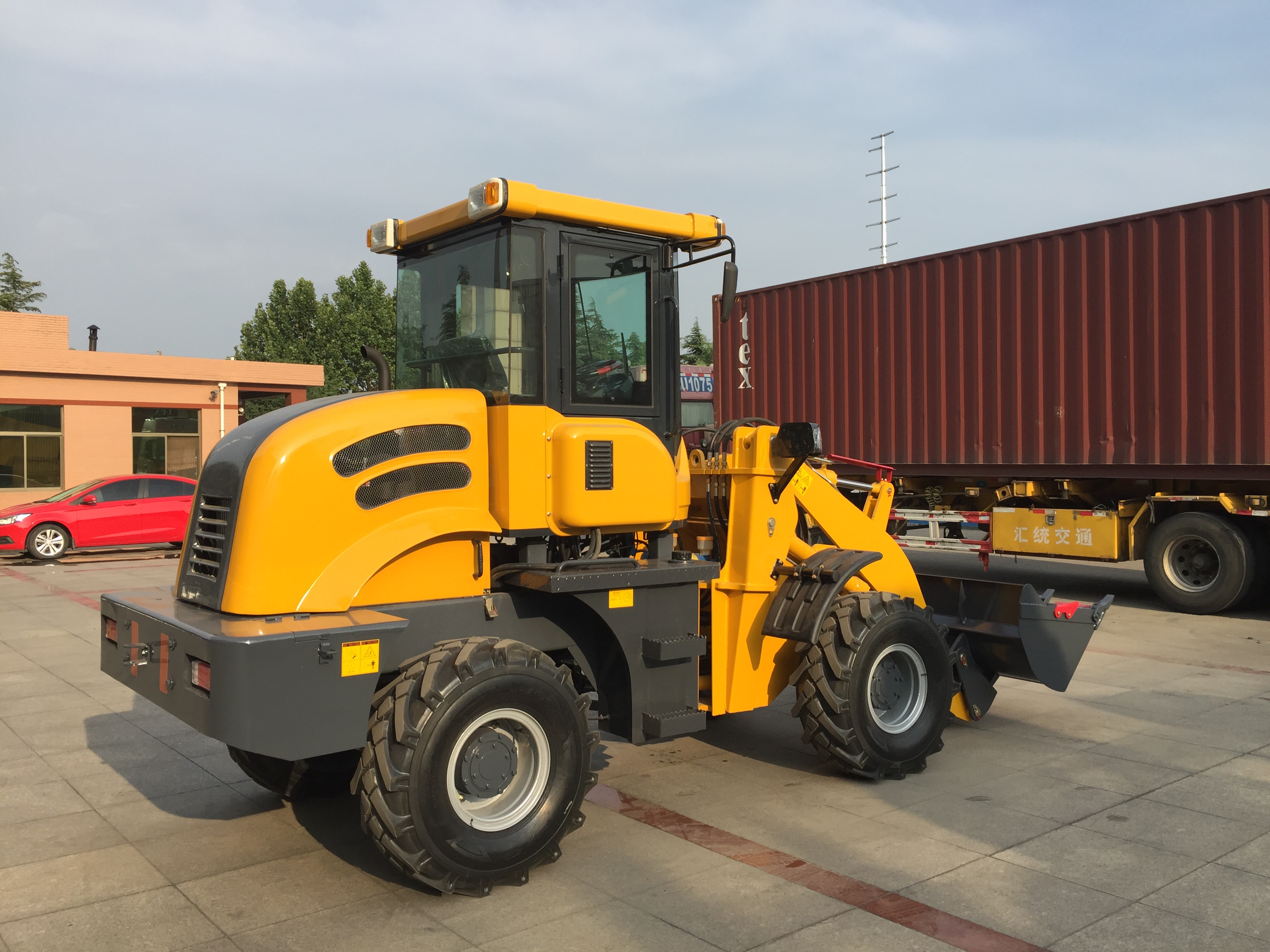

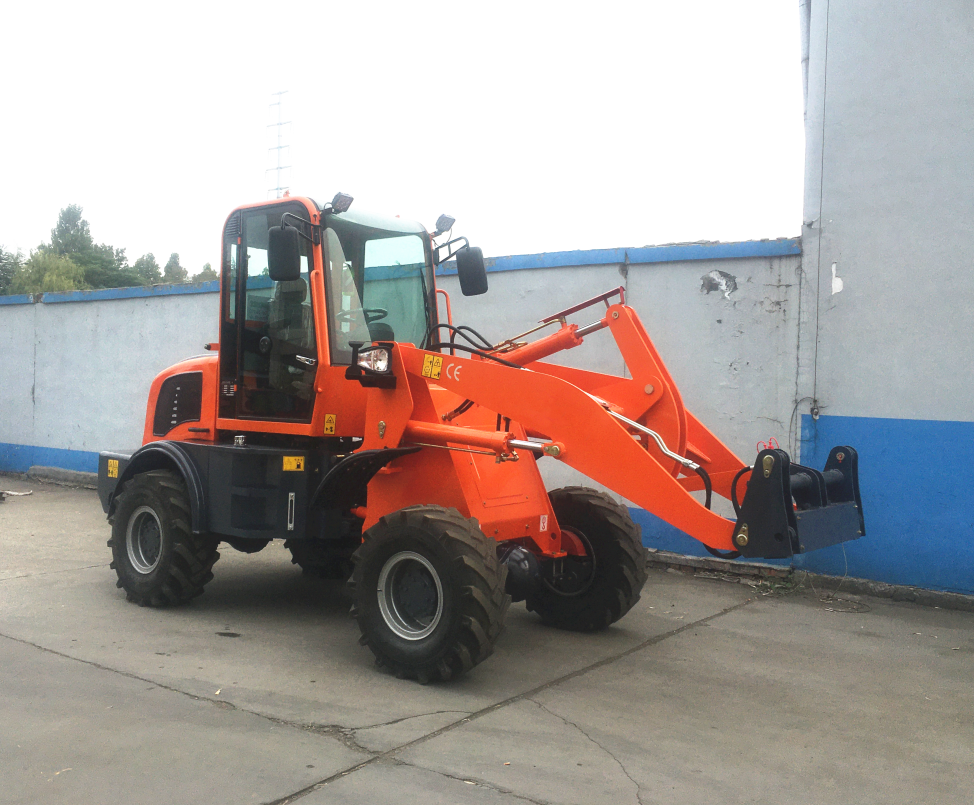

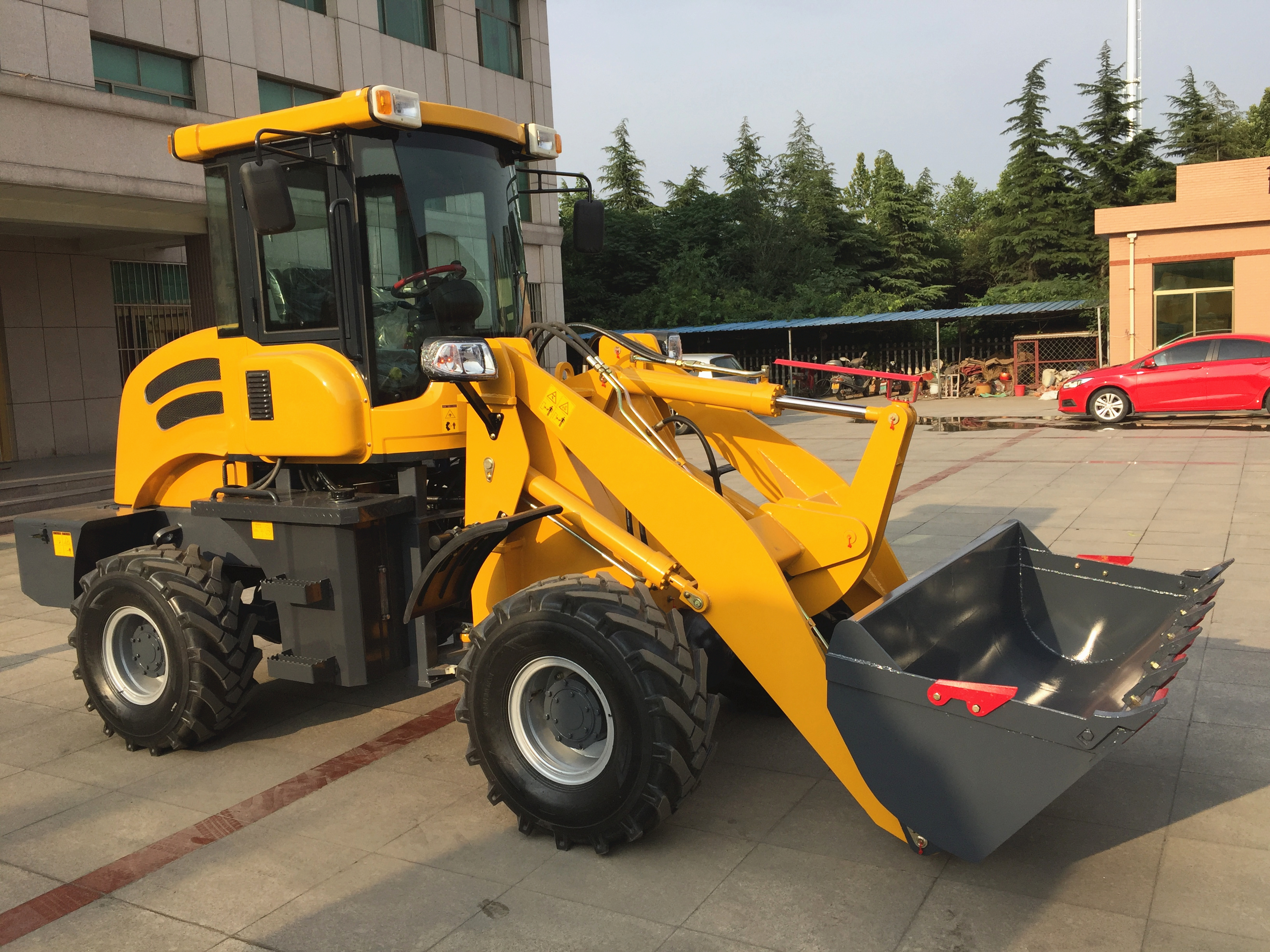

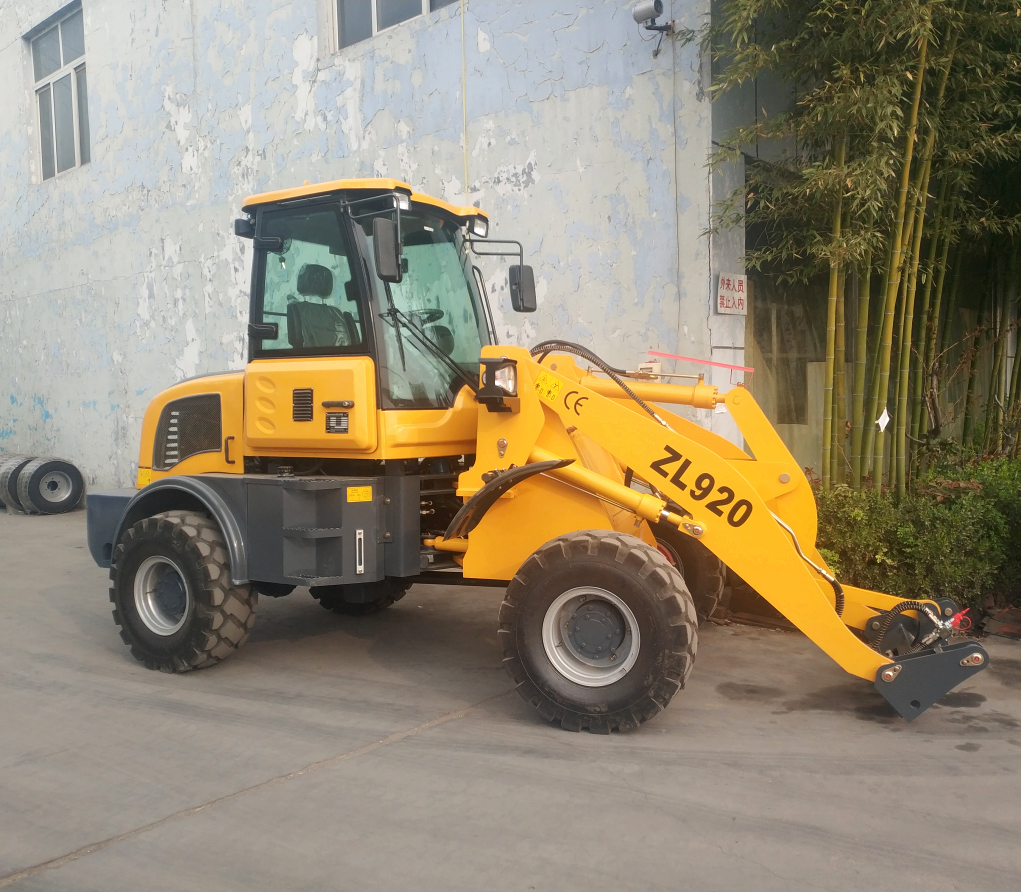

Other shapes of ZL920 mini wheel loader, different cabins, different engine covers, different oil tank etc.

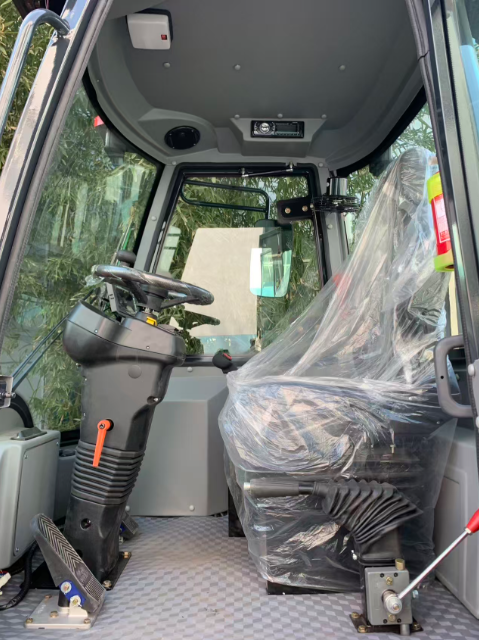

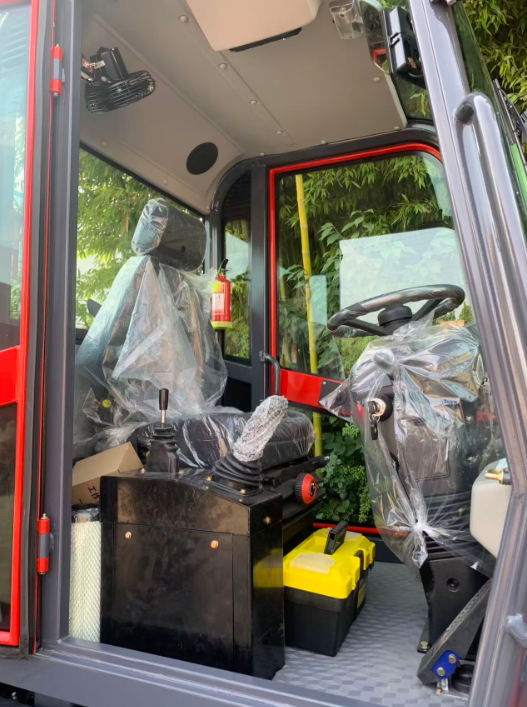

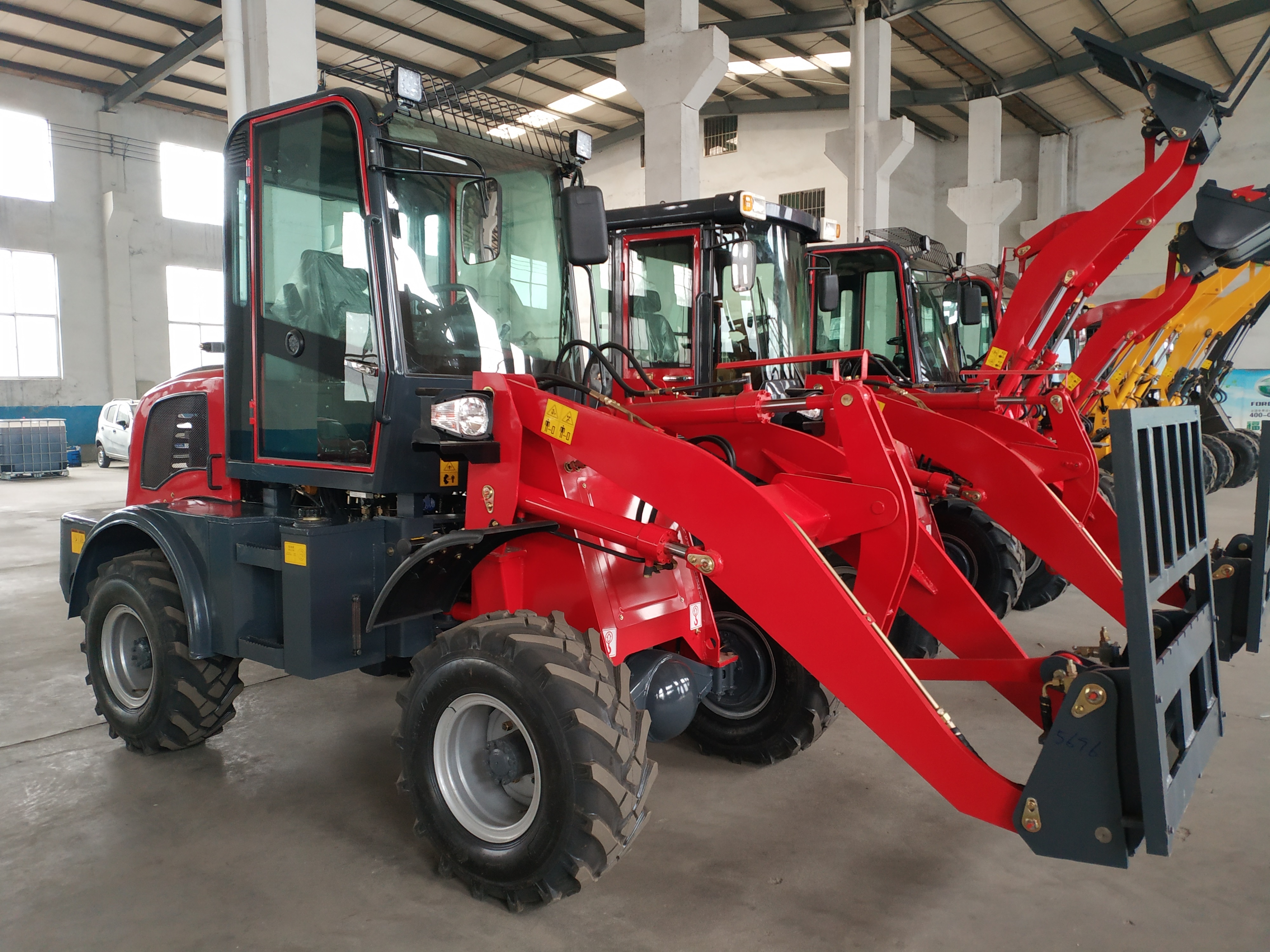

Different cabins for 1.8 ton articulating front mini wheel loader
