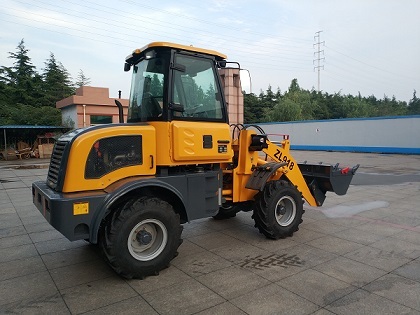

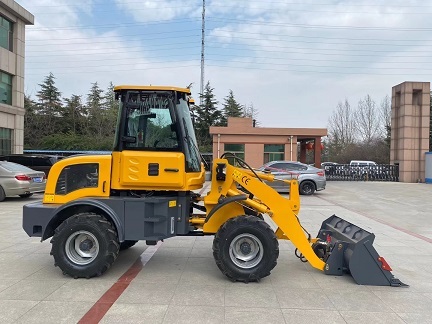

1 ton 1.5 ton 2 ton 3 ton mini wheel loader front end loader construment equipment
1. Chinese compact wheel loader, most cost effective because you are not paying for brand hype or advertising.
2. As the manufacturer of front end loader, we have the flexibility to fully customize our products to your exact needs and specifications.
3. as the manufacture of wheel loader construction equipment, Our direct control over the manufacturing process allows us to offer unparalleled customization. We can tailor every aspect of the product - from design and dimensions to materials and features - ensuring a perfect fit for your requirements.
- Leiya
- Qingzhou, China
- in 20 days
- 100 sets/month
- Information
| 1.5 ton mini wheel loader front end loader small loader | ||
Basic Parameter | Dimension | 5000*1750*2650 mm |
Rated Load | 1500 kg | |
Operating Weight | 3500 kg | |
Bucket capacity | 0.7 m³ | |
Max.Dumping Height | 3000 mm | |
Max.Dumping Distance | 1000 mm | |
Bucket width | 1690 mm | |
Boom lifting time | 4 s | |
Dump time | 3.5 s | |
Grade ability | 30° | |
Color | Customized, standard is yellow | |
Engine | Model | Quanchan 4B2-52M22 Yunnei YN27 Xinchai C490BPG Xichai 490 |
Rated power/Speed | 38kw/2400rpm (Quanchai) 42kw/2200rpm (Yunnei) 40kw/2650rpm(Xinchai) 36.8kw (Euro 3) 37kw (xichai) | |
Pattern | Inline/ Direct Injection/ water cooled/4 stroke cycle | |
Storage Battery | 80 A free-maintenance, “camel” brand | |
Transmission System | Axle | Isuzu |
Gearbox model | 240 integrated type | |
Drive Mode | Four-wheel manual drive& hydraulic | |
Steering Angle | ±35° | |
Min. Turning Radius | 3500mm | |
Steering System
| Steering System Pattern | Articulated type, Hydraulic power steering |
Braking System |
| Drum brake |
Tyre Size |
| 20.5/70-16 |
loadingx | 1 set in 20GP, 3 sets in 40HC | |
1. Euro II/III/V, EPA, Tier 2/3/4 engine for 1.5 ton mini wheel loader
2. 3/4 ways hydraulic valves
3. EU farm shape/construction shape
4. LED lights, rear/front/top light, cabin interior light
5. heater, fans, radio, MP3, fire extinguisher in cabin
6. reverse alarm, luxurious cab,adjustable seat, best tire
7. optional items: floating function, rear camera, hydraulic joystick, electronic joystick, outer preheater for engine, hand brake, netural start, AC
8.optional attachments: quick hitch, pallet fork, log fork, snow blade, snow plow, snow sweeper, 4 in 1 bucket, grass cutter, digger, drilling, hydraulic hammer etc.
9. any color as you want
